Setting up the garden of my dreams - Scroggernaut 2.0 "either yer scroggin er yer not"
Old grow was a 4x4 closet inside a garage. New grow will be a 8x10 room with a 4x8 and 2x4 in 2020, and adding at least another 4x4 in 2021. My son will be learning how to grow this year in a dedicated 2x4 space, soiless mix, hand water. The additional 4x8 will be in a dutch bucket recirculating system (Thanks to GreenMachine for the advice so far, coming for more). All tables will be custom designed and made by me.
Genetics will be a mix of Original Sensible Seeds (Bruce Banner #3) In house genetics (Slurricane ix) and some FastBuds testers
So far in 5 days I have built the structure, and completed most of the insulating. Wiring before I finish the walls to save some future headaches.
Lighting will be 3 x HLG 550 clones over a 4 x 10 foot area. This gives 36 LED watts per sqft, and the PAR rating on these lights is insane. Should be more than enough light. Thank you to XeenRecoil for the advice on Samsung LM301b and h diodes
Spend so far:
Materials = $405
Lights x 3 = $1650 (good deal - Yuanhui LED on Alibaba - Abby Zheng is the best)
Pump = $30 @ 70% off
Dutch bucket, hempy bucket, bato bucket, etc etc...
Conventional medium is perlite/vermiculate. Recent trend has seen some growers go coco above the dutch hole, and perlite below. For those that have tried both, what is best? And why?
If you're set on going hydro, then I strongly suggest you consider NFT. In your space, you could fit a couple of 2 x 6 or 8' trays and grow mega-crops. Look at @hydrohippy_1 diaries:
growdiaries.com/grower/hydrohippy-1
Getting there... cant wait for Spring
Walls are up and painted, floor is laid, electrical all done, exhaust outlets mounted. Ive started to install the trim - I decided to put a grey stain instead of boring paint on the floor trim boards. Looks really solid against the dark bamboo floors.
I used two gallons and two coats of flat pure white paint for walls and ceiling. Should give me a reflectivity somewhere around 80%. Some may ask why not opt for mylar? I just dont like the look. I dont care too much for reflectivity, as I will be well above the required watts/sqft with the light setup I will be using.
I mounted an electrical receptacle in the ceiling, I thought it may come in handy for cord management. Im going to mount the 3 x meanwell drivers outside of the grow room and run some extra long cables to them. This is to keep heat out of the room, any little bit helps.
Will be running a 8inch fan with about 750 CFM in order to properly vent the room. Intake will be a door vent and the negative pressure the fan provides. Odor is not too much of a concern, but may as well add a carbon filter.
Tables to be built this week after trim is installed
Week 1 Spend - $2080
Week 2 Spend - $350 (mostly on hardware store visits)
Total so far - $2430
Final painting and floor trim completed. Walls are white and bright.

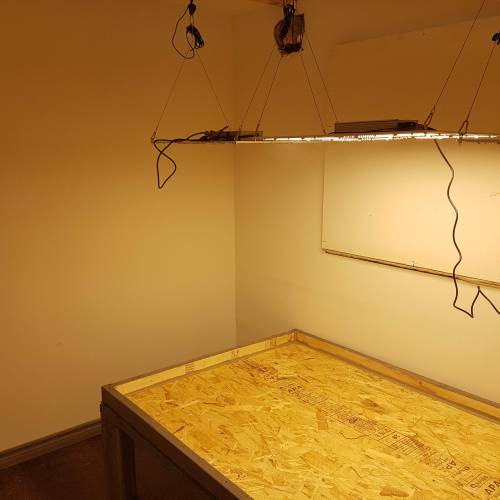

I started to construct the main flood table. It is made of 2x3's and a sheet of chipboard. I fastened some rails at the perimeters and used caulking to seal all gaps. I will coat the face of the chipboard with a polyurea flat roof coating to make it completely watertight. I have 1/4 : 12 slope on it right now so that it drains to the reservoir end. I stained the sides of the table grey to match the floor trim because ambiance matters
Shelves are up to hold my nutes/test pens/genetics/nug/papers/etc...
I brought in one of the 3 HLG 550 clone qb's to test for light as I have never seen them in action. WOW!! Having one running is quite intense, I cant wait to see what all 3 going over the 4x10 area will look like (with shades on of course)
A minor adjustment is needed to the height of the A/C exhaust vent. It is currently too high by 2" and needs to be lowered. Kind of a pain in the ass, but needs to be done for the table to fit snug.
Previous total spend $2430
This weeks spend =
$50 (hardware)
$165 - killer deal on ebay for 8 inch fan/filter/ducting. open box, new
Room is almost there
Flood table coating was completed this week. Took forever to cure in the colder weather, but it is looking great now. Normally I wouldnt use this stuff because it is $200 per gallon, but since Im in the industry, these expired sample cans didnt cost me a cent and provides a much more durable, reflective, cleanable and puncture resistant alternative to plastic. Im very happy with the table overall, it cost me very little to build
I installed the fan and carbon filter, moves about 750 cf per minute. Its a bit loud, but its huge, so what are ya gonna do?
My dutch bucket pails are slowly being collected from my local coffee shop. I need 4 - 8 more. Ive got all the hardware to set up the watering system, so I will work on that in the coming week
Which of the two options do you choose and why:
Option 1: 1440w over 40sqft giving 36w per sqft
Option 2: 1440w over 48sqft giving 30w per sqft.
The difference is an extra 2x4 of grow space. Do i go for more lumens or more plants? This is my first LED setup
More lumens will give you bigger, better, tastier, nicer looking buds. More plants will give you more bud(perhaps) but the quality will not be as good, always go for extra light, you will need it in flowering too!, 😁🌱👍
BudXs
